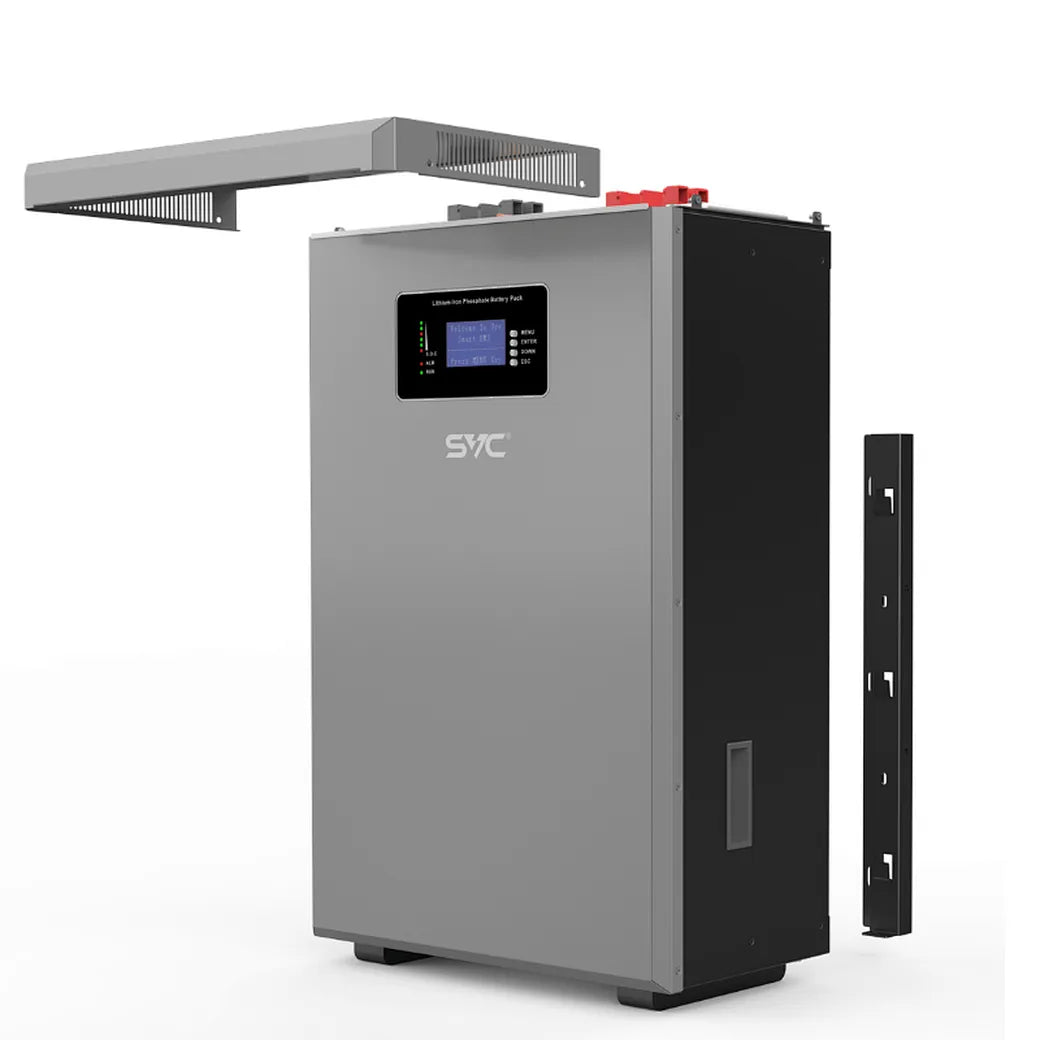

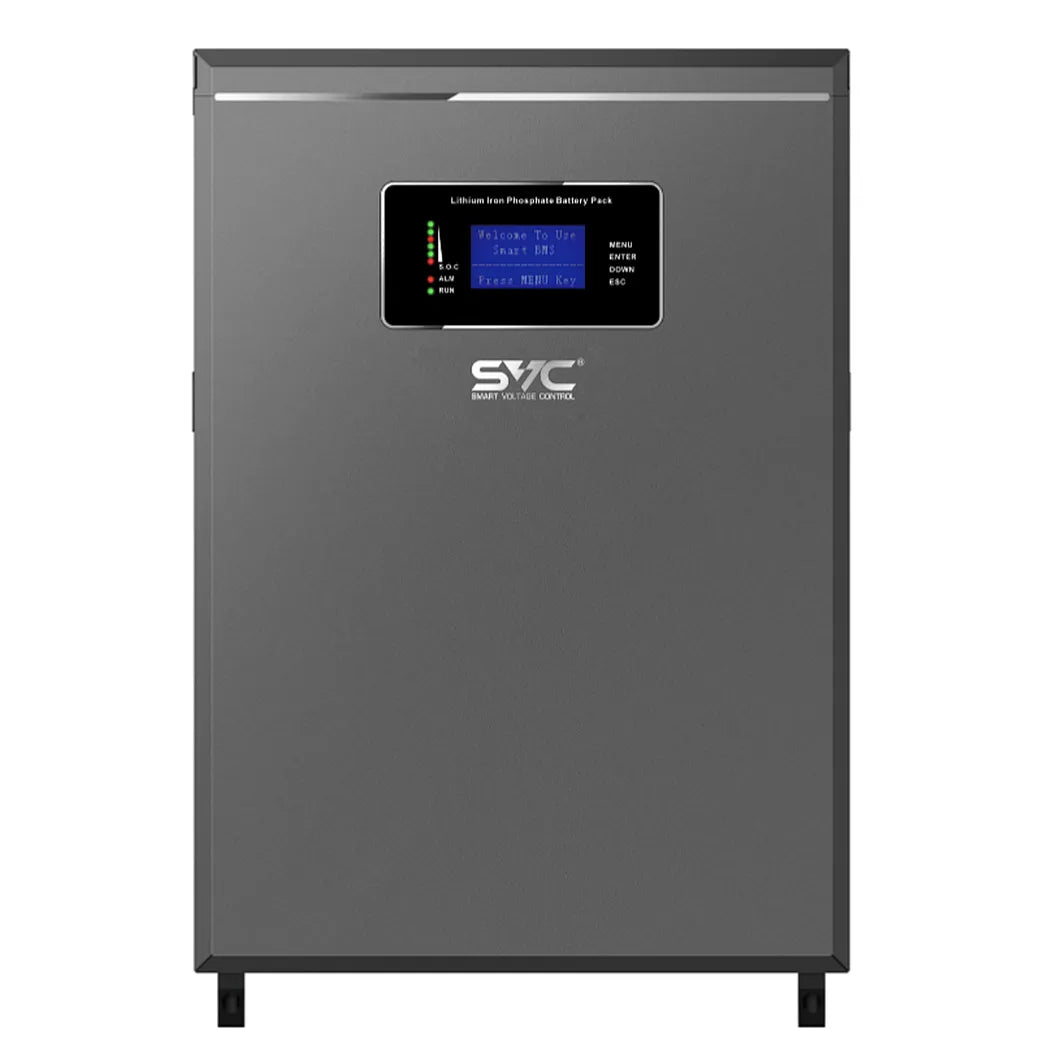

The SVC Phoenix 48-200 is a high-capacity wall-mounted lithium iron phosphate battery designed for residential, commercial, and solar energy storage systems. With a 10.24kWh storage capacity, integrated BMS protection, and support for parallel expansion, it provides efficient and scalable energy storage for hybrid and off-grid applications.

Features

• 10.24kWh energy storage capacity
• 51.2V nominal voltage
• 200Ah battery capacity
• LiFePO₄ battery technology
• Wall-mounted installation design
• Integrated Battery Management System (BMS)
• Up to 6000+ cycle life at 80% DoD
• 200A continuous charge/discharge current
• Peak discharge current: 300A (3 seconds)
• Supports parallel connection of up to 16 units
• RS485 and CAN communication
• Optional WiFi, Bluetooth, and SNMP monitoring
• Compatible with major inverter brands
• LCD display for real-time monitoring
• Low-noise operation
• Overcharge and over-discharge protection
• Overcurrent and short-circuit protection
• Suitable for solar energy storage and backup power systems
