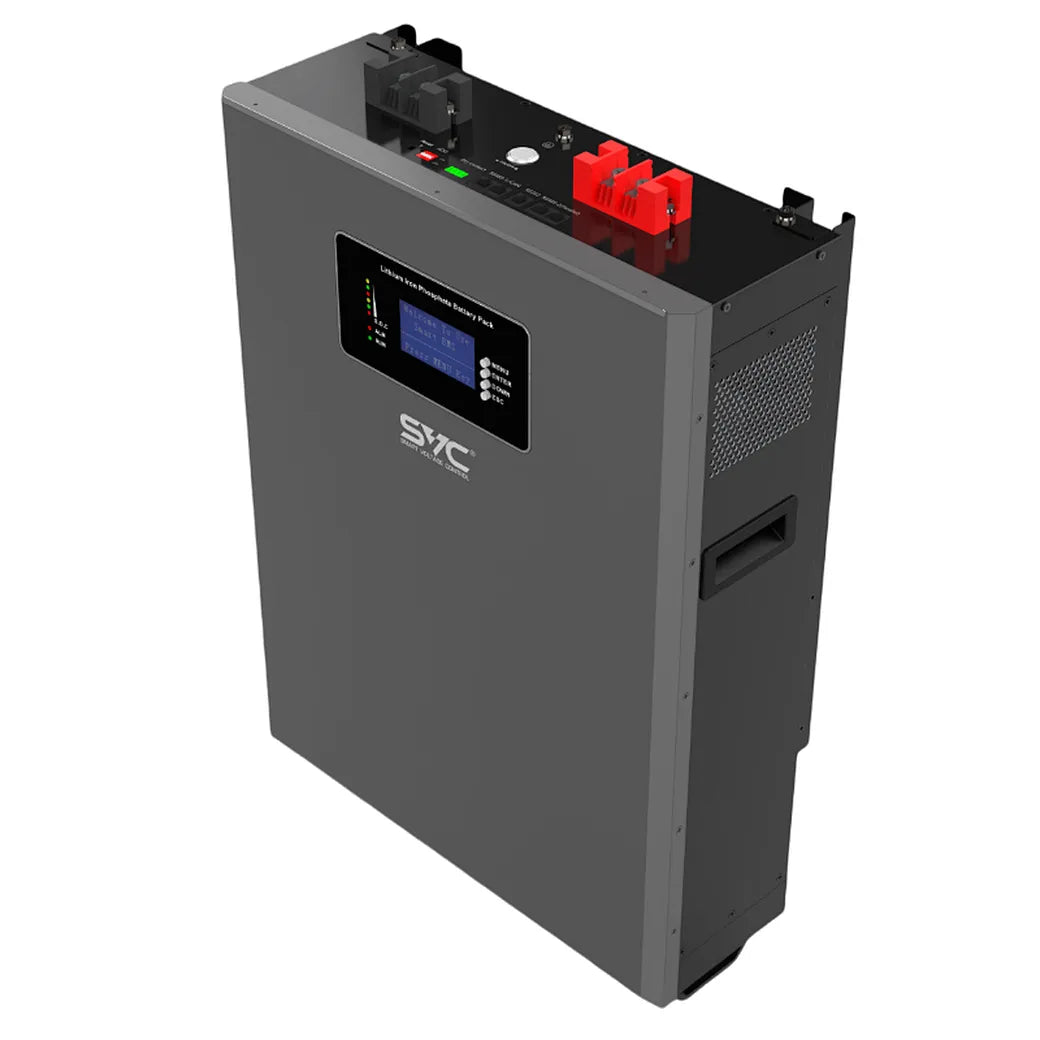

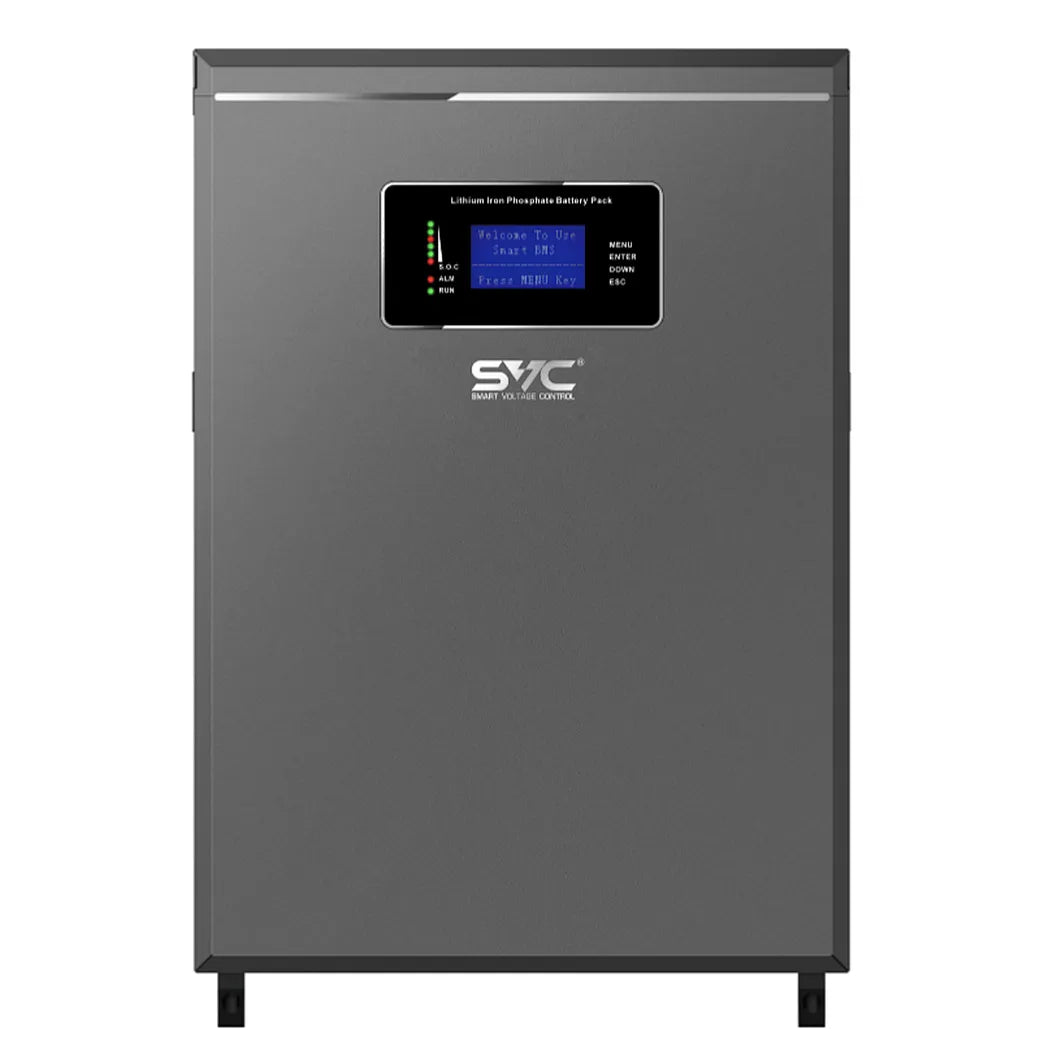

The SVC Phoenix 48-100 is a wall-mounted lithium battery designed for solar energy storage, backup power systems, and hybrid inverter applications. Featuring advanced LiFePO₄ cells, intelligent BMS protection, and inverter communication support, it delivers dependable energy storage with long cycle life and efficient performance.

Features

• 5.12kWh energy storage capacity
• 51.2V nominal voltage
• 100Ah battery capacity
• LiFePO₄ battery chemistry
• Wall-mounted installation
• Built-in Battery Management System (BMS)
• Up to 6000+ cycles at 80% DoD
• 100A continuous charge/discharge current
• RS485 and CAN communication support
• Optional WiFi and Bluetooth monitoring
• Compatible with hybrid and off-grid inverters
• LCD display for real-time monitoring
• Low-noise operation below 40dB
• Overcharge protection
• Over-discharge protection
• Short-circuit protection
• Temperature protection
