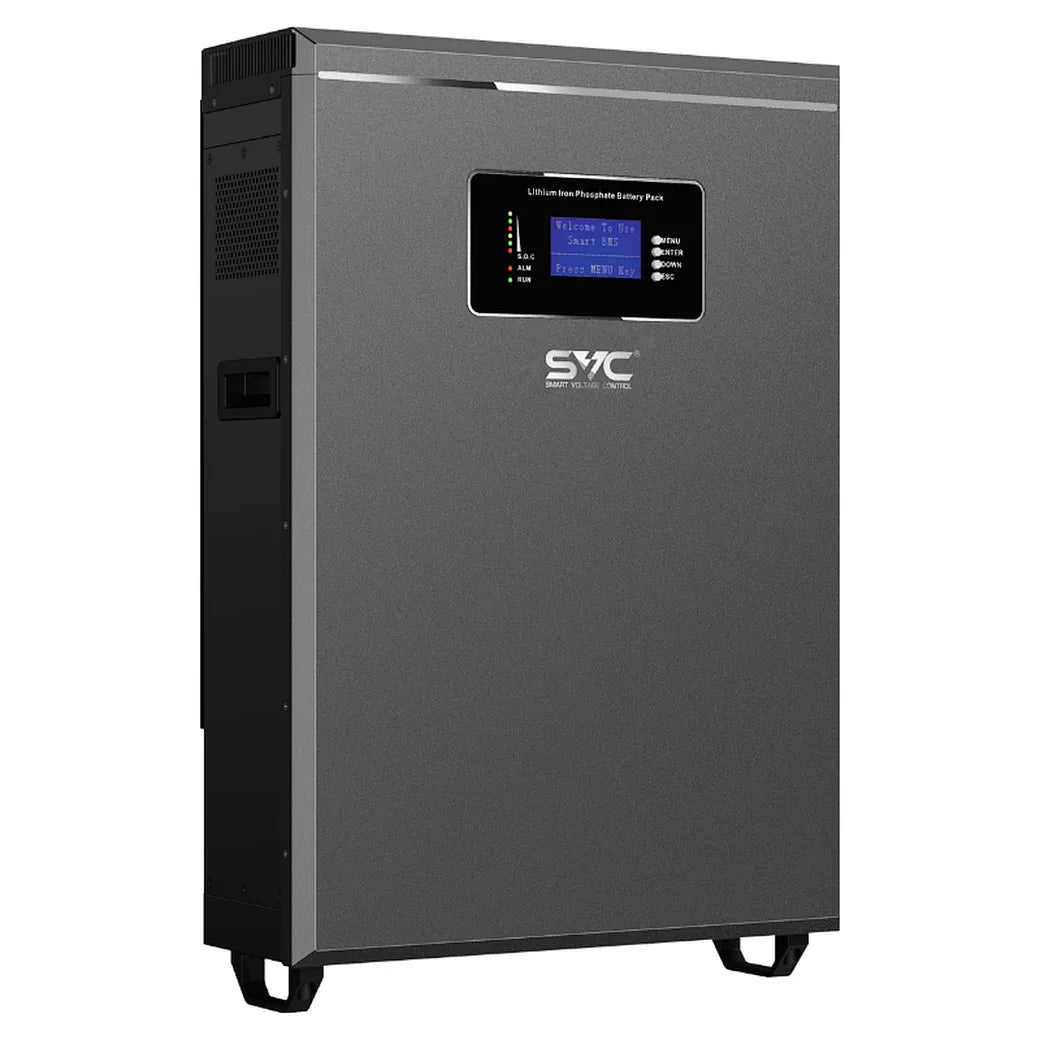

The SVC Phoenix 24-200 is a wall-mounted lithium iron phosphate (LiFePO₄) battery designed for residential solar energy storage and backup power applications. With a 5.12kWh storage capacity, integrated Battery Management System (BMS), and support for inverter communication, it provides reliable energy storage for solar systems and off-grid installations.

Features

• 5.12kWh energy storage capacity
• 25.6V nominal voltage
• 200Ah battery capacity
• LiFePO₄ battery technology
• Wall-mounted installation design
• Integrated Battery Management System (BMS)
• Up to 6000+ cycle life at 80% DoD
• Maximum continuous discharge current: 100A
• Peak discharge current: 150A (3 seconds)
• RS485 and CAN communication
• Optional WiFi, Bluetooth, and SNMP monitoring
• Compatible with major inverter brands
• LCD display for system monitoring
• Low-noise operation
• Overcharge and over-discharge protection
• Short-circuit and overcurrent protection
• Operating temperature: -20°C to 60°C
