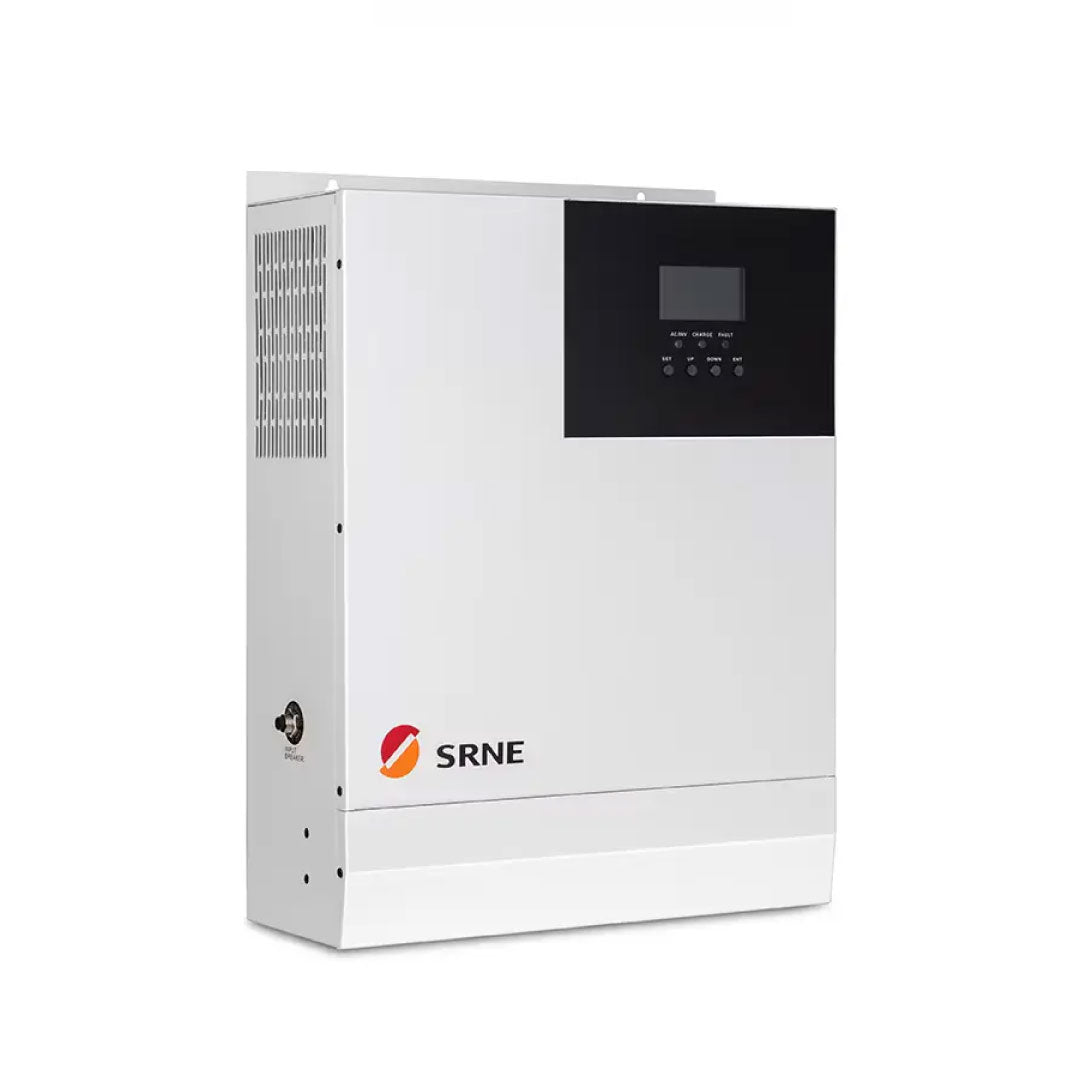

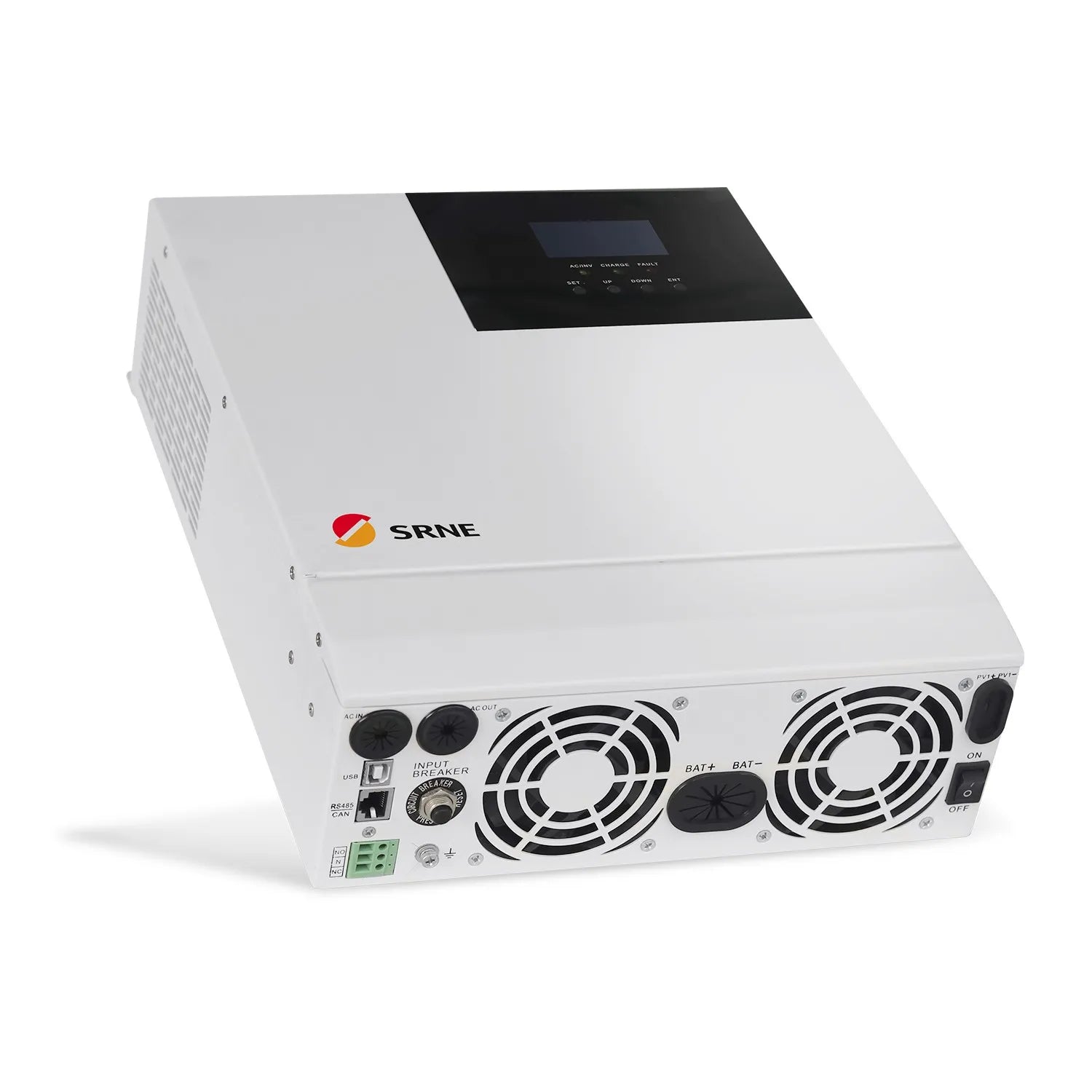

SRNE 3.3kW Hybrid Solar Inverter 24V

The SRNE 3.3kW Hybrid Solar Inverter 24V  is a versatile all-in-one solar power solution designed for residential, small business, and off-grid energy applications. Combining a pure sine wave inverter, MPPT solar charge controller, and battery charger into a single unit, it simplifies solar system installation while delivering reliable and efficient power management.

Designed for 24V battery systems, the inverter supports lithium and lead-acid batteries, making it suitable for a wide range of solar energy storage setups. Its advanced MPPT technology helps maximize solar energy harvesting, while intelligent power management ensures seamless operation between solar panels, batteries, and utility or generator power sources.

With a 3.3kW output capacity, the SRNE HF2430S80-H is ideal for powering essential household appliances, office equipment, lighting systems, routers, televisions, refrigerators, and other everyday electrical loads. The pure sine wave output ensures compatibility with sensitive electronic devices and appliances.

Features

• 3.3kW pure sine wave output
• 24V battery system compatibility
• Built-in MPPT solar charge controller
• Integrated inverter, charger, and solar controller
• Supports lithium and lead-acid batteries
• Maximum PV input power of 4000W
• High-voltage solar input up to 500VDC
• Intelligent battery charging management
• Generator and utility grid compatibility
• LCD display for monitoring and configuration
• Multiple protection functions for system safety
• Compact wall-mounted design
• Suitable for residential and off-grid solar systems

Specifications

• Product Name: SRNE HF2430S80-H Hybrid Solar Inverter
• Rated Output Power: 3300W
• Battery Voltage: 24V
• Output Waveform: Pure Sine Wave
• Maximum PV Input Power: 4000W
• Maximum PV Open Circuit Voltage: 500VDC
• MPPT Voltage Range: 120V–450VDC
• Maximum PV Charging Current: 80A
• Maximum AC Charging Current: 80A
• Rated Output Voltage: 230VAC
• Frequency: 50Hz / 60Hz Auto Detection
• Peak Power: 6000VA
• Maximum Efficiency: >92%
• Dimensions: 378 × 280 × 103 mm
• Weight: 7.4kg
