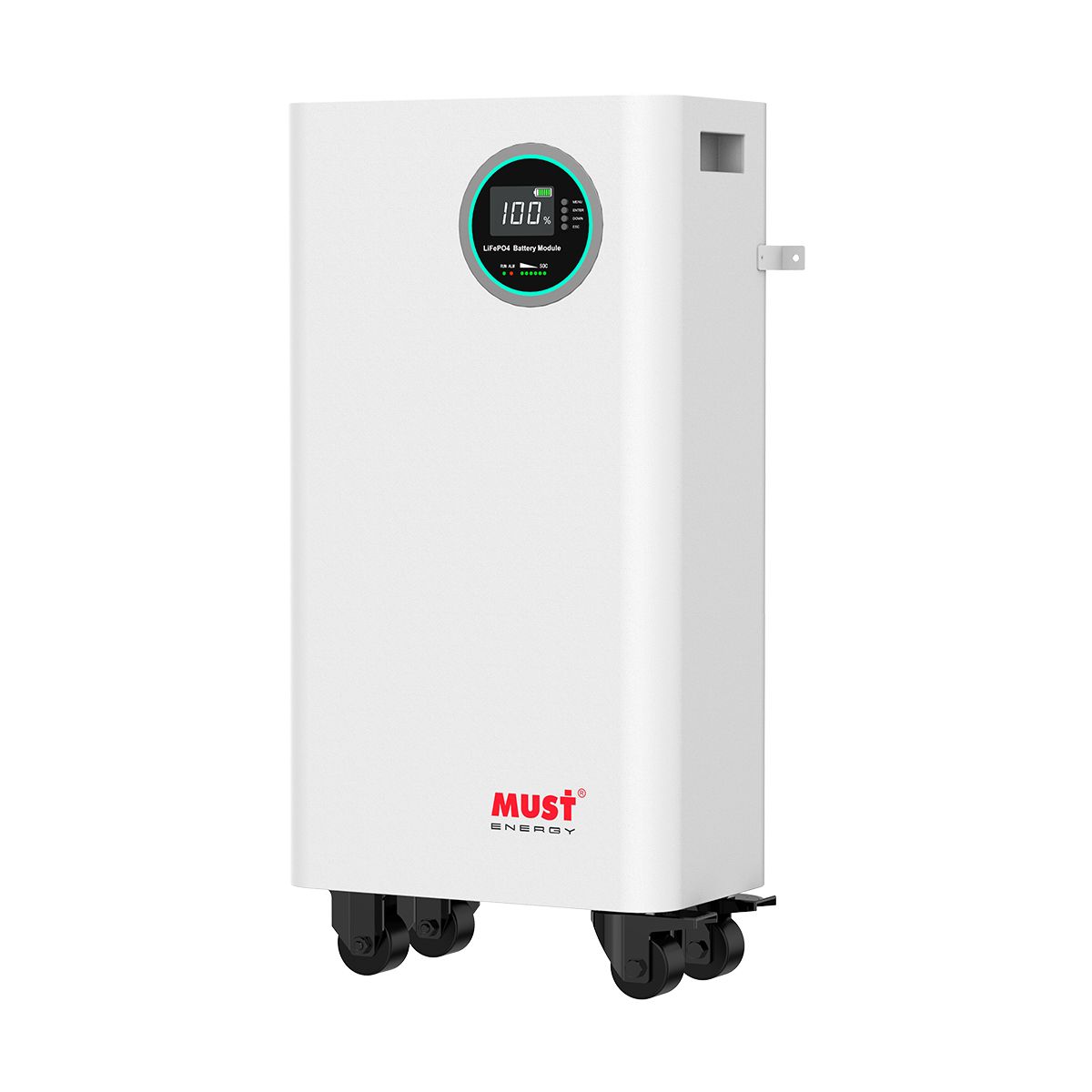

The LP1600 Series is a professional-grade LiFePO4 Energy Storage Battery designed for maximum flexibility and scalability. Featuring a robust SPCC Metal Housing, it supports versatile installation options including Rack-Mount, Wall-Mount, Stacked, and Vertical (Wheeled) configurations. With capacities ranging from 2.56kWh to a massive 30.72kWh per unit and support for 15-unit parallel connection, it is the ideal solution for expanding residential solar systems or building industrial-scale power banks. Integrated WiFi/Bluetooth and CAN/RS485 ensure seamless communication with inverters and remote monitoring.

Key Features

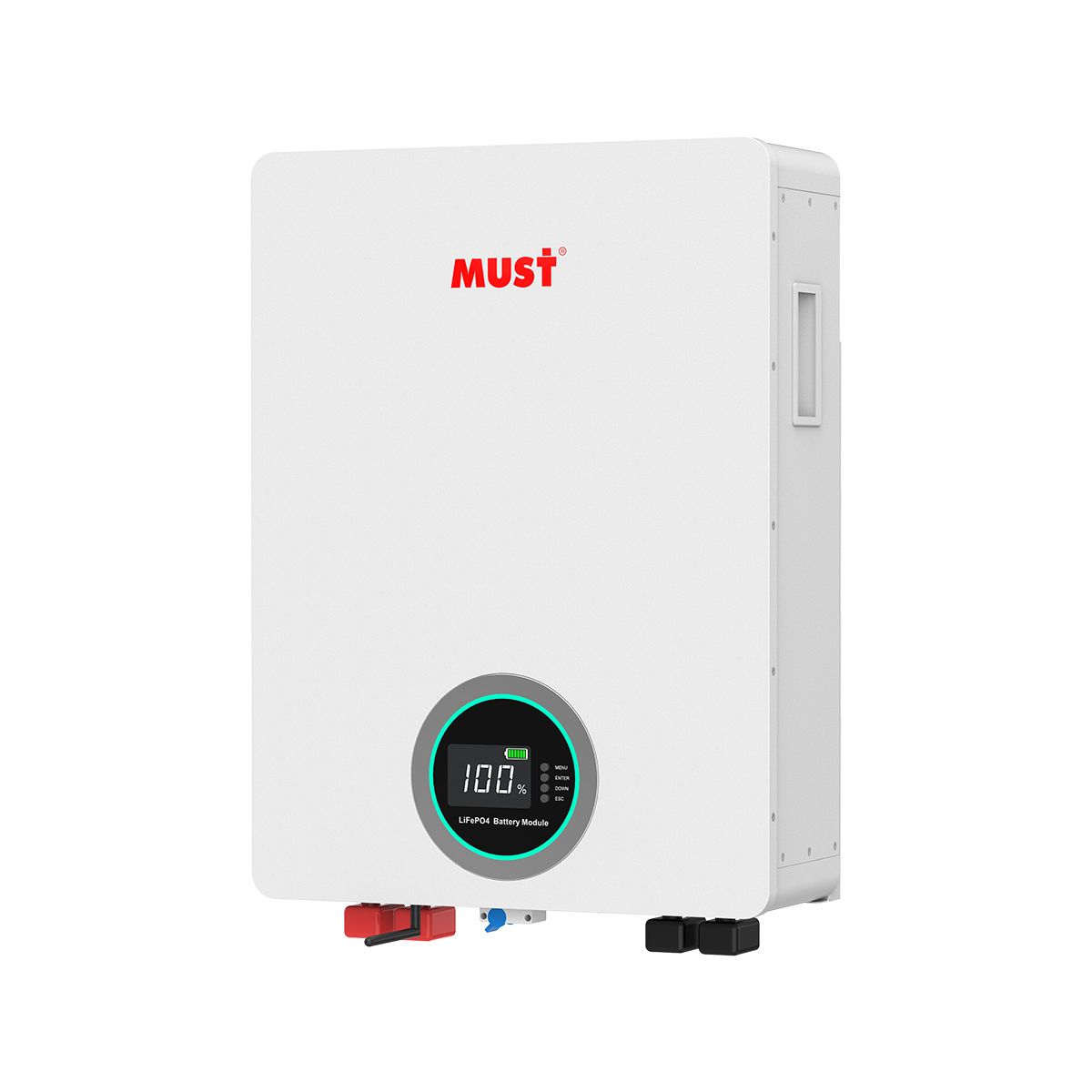

• Ultimate Installation Flexibility: One battery, multiple mounting styles. Supports standard 19-inch Rack Mounting, space-saving Wall Mounting, modular Stacking, or Vertical Standing (with optional wheels on larger models) to fit any garage or utility room.

• Massive Energy Density: Offers a wide range of capacities from 100Ah (2.5kWh) up to an industry-leading 600Ah (30.72kWh) in a single cabinet, reducing the number of units needed for large systems.

• Industrial-Grade Scalability: Advanced BMS allows for the parallel connection of up to 15 units, enabling system expansion up to hundreds of kWh for commercial applications.

• Smart Connectivity: Built-in WiFi and Bluetooth modules allow users to monitor battery health, SOC, and cycles in real-time via a smartphone app.

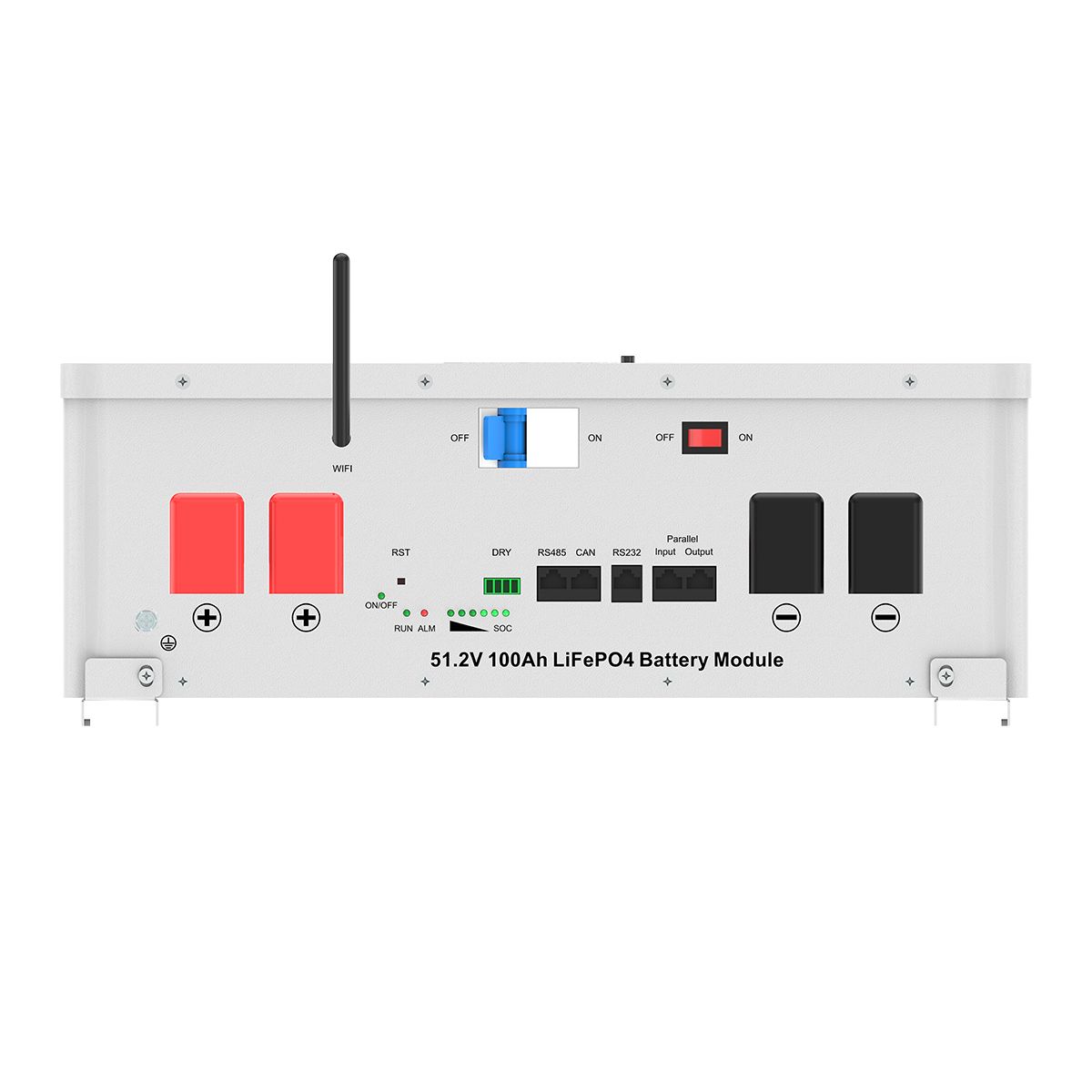

• Universal Inverter Compatibility: Equipped with CAN2.0, RS485, and RS232 ports, ensuring seamless communication and closed-loop control with most major hybrid inverter brands (e.g., Victron, Growatt, Deye, MUST).

• High-Discharge Power: The 48V models support continuous discharge currents of 100A to 200A, capable of driving high-power inverters (5KW-10KW) without throttling.

• Long Lifespan: Rated for ≥6000 cycles at 80% DOD, providing over 10-15 years of daily service.

Applications

• Home Energy Storage: Stackable design fits neatly in corners, storing solar power for night use.

• Commercial Backup: Parallel capability supports large loads in offices or server rooms.

• Off-Grid Systems: High capacity 48V models (300Ah/400Ah/600Ah) reduce wiring complexity for large off-grid arrays.
