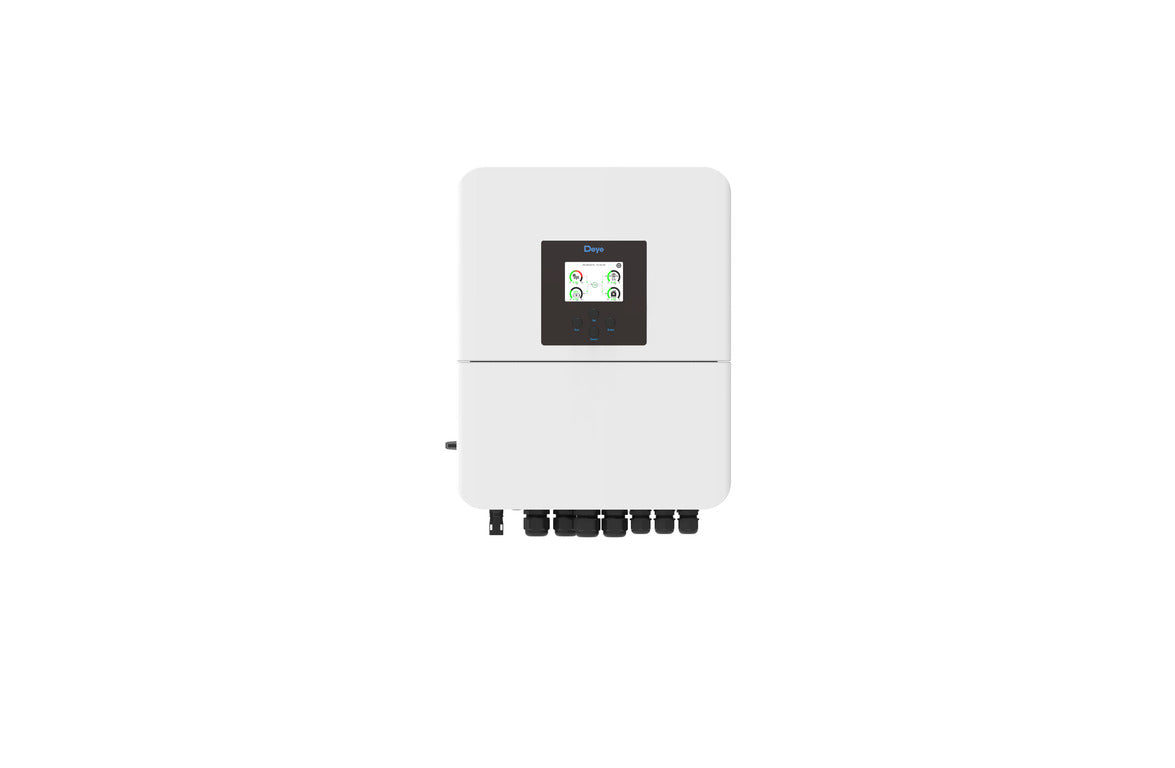

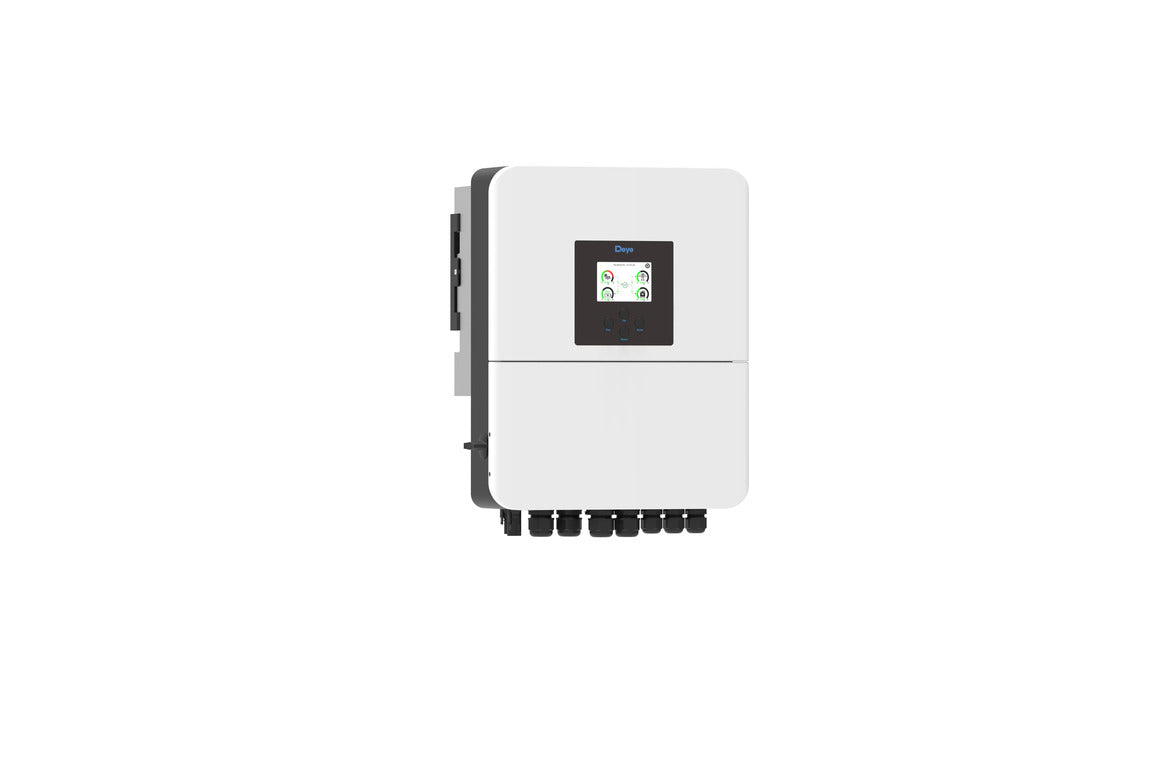

The Deye 3.6kW Single Phase Hybrid Inverter is a smart energy management solution designed for residential solar power and energy storage systems. Featuring advanced hybrid technology, dual MPPT solar tracking, and low-voltage battery compatibility, it helps maximize solar energy utilization while ensuring reliable power availability for daily household needs.

Designed for flexibility and efficiency, this inverter supports solar panels, battery storage, grid power, and generator integration within a single system. Its intelligent energy management capabilities allow users to optimize power consumption, store excess solar energy, and maintain backup power during grid interruptions. The IP65-rated enclosure and advanced monitoring features make it suitable for a wide range of indoor and outdoor installations.

Features

• 3.6kW rated output power
• Single-phase hybrid inverter design
• Compatible with low-voltage lithium-ion and lead-acid batteries
• Battery voltage range: 40V–60V
• Dual MPPT technology for improved solar energy harvesting
• Maximum PV input power of up to 7,200W
• MPPT voltage range: 150V–425V
• Maximum charging and discharging current of 140A
• Supports parallel operation for system expansion
• Compatible with solar panels, battery storage, utility grid, and generators
• AC coupling support for upgrading existing solar installations
• Intelligent battery charging and discharging management
• Six programmable battery charge/discharge time periods
• Color touch LCD display for easy monitoring and control
• WiFi, RS485, and CAN communication support
• High efficiency with up to 97.6% conversion efficiency
• IP65-rated enclosure for enhanced environmental protection
• Low-noise operation with natural cooling design
• Advanced safety protections including overvoltage, short-circuit, reverse polarity, anti-islanding, and surge protection
• Suitable for residential and small commercial solar energy systems
